System Monitor Overlay

This overlay displays real-time system information like CPU and memory usage. It's designed to be used as a browser source in streaming software like OBS Studio.

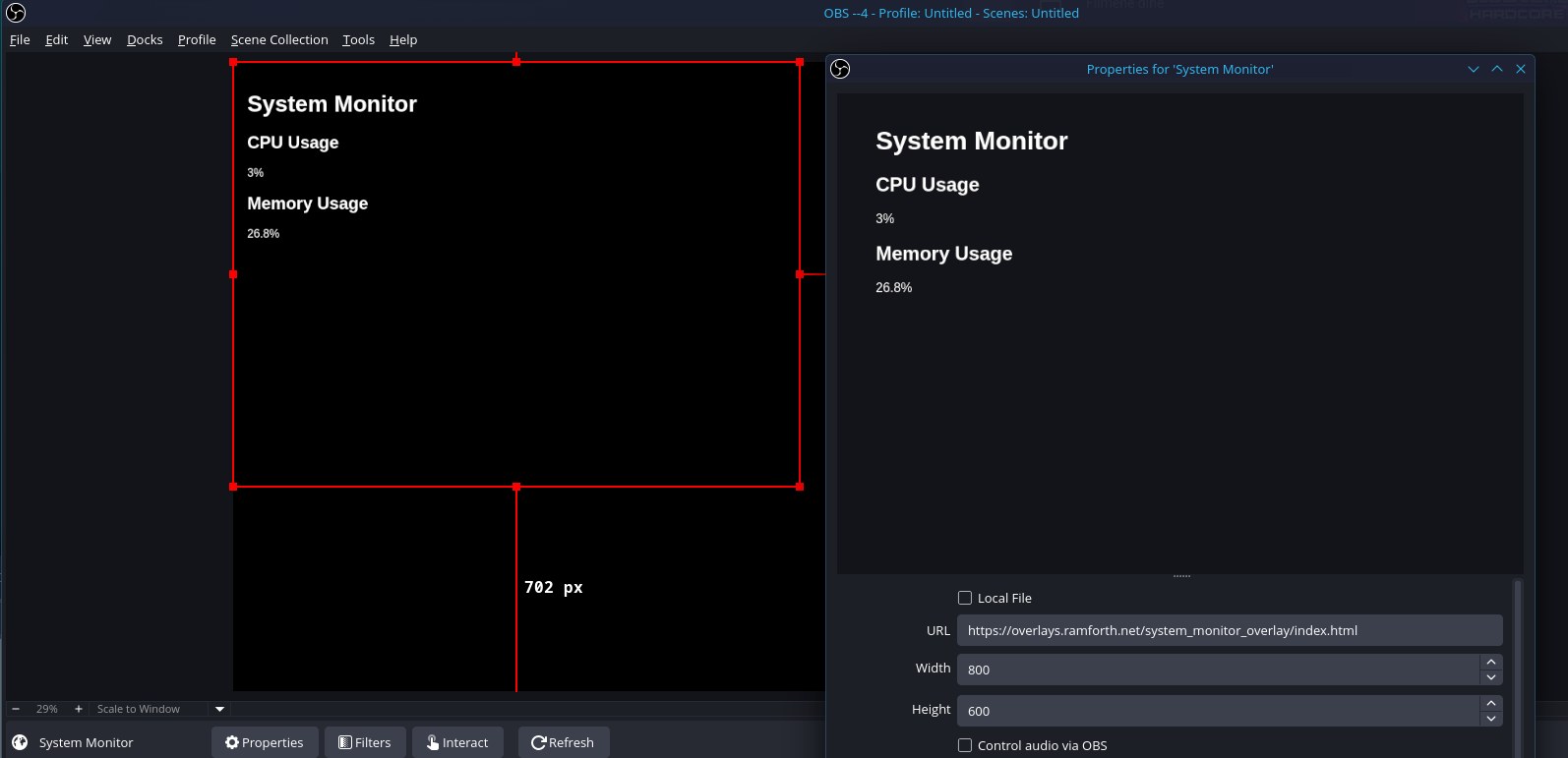

Example Output

Setting up the Python Environment

Before you can run the server, it's recommended to create a virtual environment to keep the dependencies for this project isolated from your system's Python installation.

1. Create a virtual environment:

   python3 -m venv venv


2. Activate the virtual environment:

   • On Linux/macOS (bash/zsh):

     source venv/bin/activate


   • On Linux/macOS (fish):

     source venv/bin/activate.fish


   • On Windows:

     .\venv\Scripts\activate


   You will know the virtual environment is active when you see (venv) at the beginning of your command prompt.

Installation

Once you have activated the virtual environment, you can install the required library and run the server.

1. Install the required library:

   pip install psutil


2. Run the server:

   python server.py


   The server will start on port 8000.

3. Add to OBS Studio:

   • Add a new "Browser" source to your scene.
   • Set the URL to the system_monitor.html file in this directory.
   • Set the width and height to your desired dimensions.

Overlays

• system_monitor.html: The default overlay with a heading.
• system_monitor_no_heading.html: An alternative overlay without the heading.
